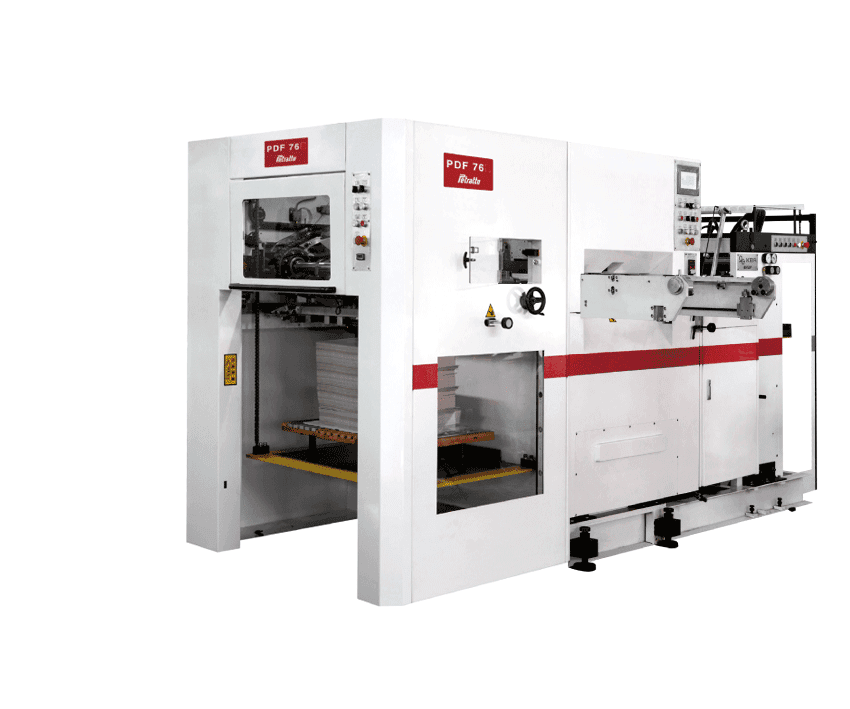

Traditional die cutter PDF76

Format: 50 x 70

PDF76

General information

Versatility and high-speed performance at low investment cost.

Designed for the 500x700 mm format and for stocks ranging from 80 g up to corrugated cardboard E-Flute, the traditional die cutting machine PDF76 can carry out standard jobs like cutting, creasing, perforation, and kiss cut. A high-speed production machine that requires a low investment cost.

Feeder

  • Equipped with non-stop feeding system supplied by Mabeg Machinery (Shanghai) Co., Ltd.

  • There are 2 suction cups for lifting paper and 2 other suction cups for moving paper. Height and angle of suction heads are easily adjustable.

  • Micro-adjustment is available for transversal position of pile table; up and down of pile table is with double-speed adjustment.

  • Maximum pile height up to 1300 mm.

Main motor and clutch

  • Main motor is from Siemens.

  • Equipped with pneumatic clutch.

  • Equipped with a reliable progressive speed reduction system.

Lubrication of main drive

  • Equipped with centralized lubrication system.

  • The elbows bar mechanism and crank rod of the main drive are lubricated consistently.

  • Main chain is lubricated periodically with PLC control.

Machines

PDF76 Variants

pdf76t

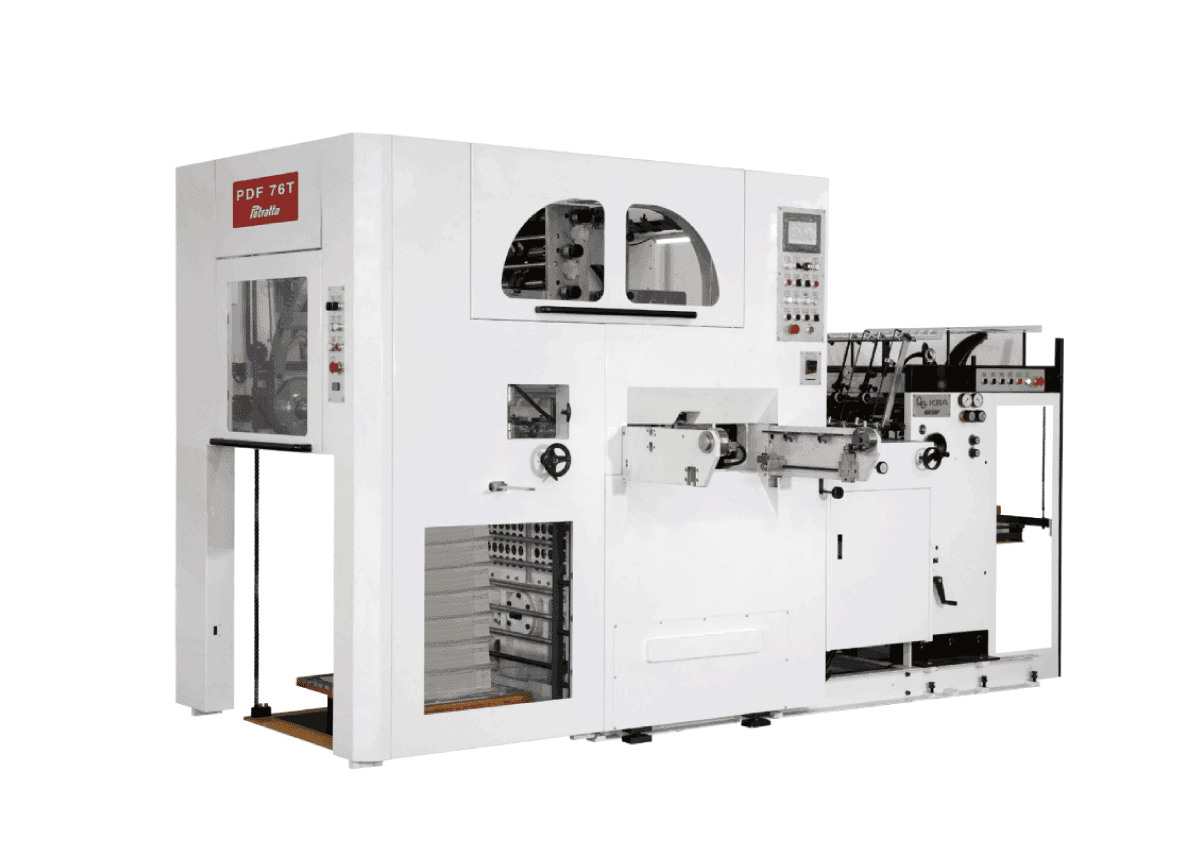

PDF76T with hot foil unit

The PDF76T die cutting machine is like the PDF76. In addition, it is equipped with a hot foil group to apply foils that enhance the aesthetics of the finished product.

pdf76eb

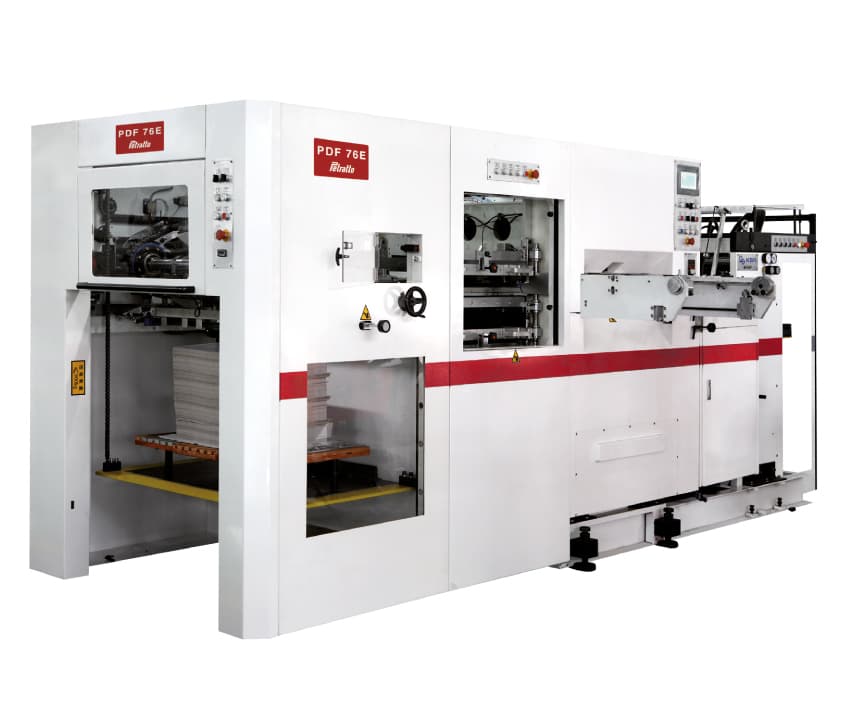

PDF76E with stripping unit

PDF76E is an automatic high-speed die cutting machine equipped with a stripping unit. Designed for 500x700 formats and stocks ranging from 80 g up to corrugated cardboard E-Flute, this machine can carry out standard jobs such as cutting, creasing, perforation, and kiss cut.
