Traditional die cutter PDF60

Format: 45 x 60

General information

Efficient and cost-effective solution for medium and large production runs.

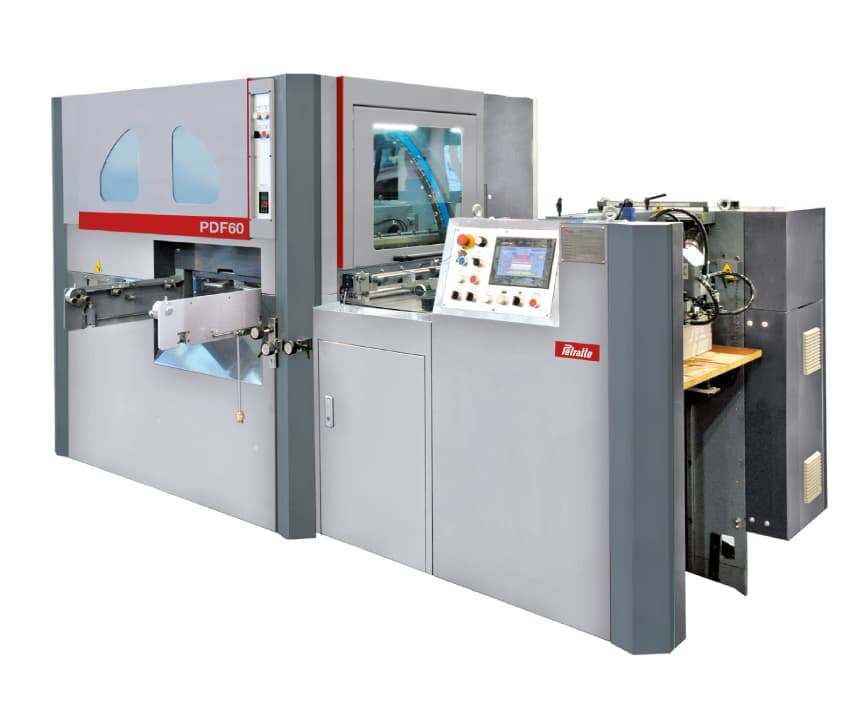

The PDF60 is a high-speed traditional die-cutting machine designed for formats up to 450 × 600 mm and suitable for paper and board from 150 to 450 g/m².

This versatile machine performs die cutting, creasing, perforating and kiss-cutting.

Compact and reliable, PDF60 is ideal for commercial printers and converters looking for professional-grade output with low initial investment. Its robust design and straightforward operation make it an excellent choice for medium to large production volumes.

Feeder

PDF60 is equipped with a non-stop feeding system supplied by Mabeg Machinery (Shanghai) Co., Ltd.
A lateral blowing system is adopted to enhance paper separation. It is equipped with an
electronic sensor to detect double-sheet conditions.
On the suction head, there is a micro adjustment device to adjust paper feeding and increase efficiency.

Side lay

The standard machine is equipped with one side lay, with a sensor at the operator side.
It is also equipped with front lay sensors for setting up the position.
The installation of the anti-obstacle device on the feeder is to prevent objects from entering into the machine, potentially causing damages.

Delivery/stacking section

PDF60 is equipped with side lay to collect the pile tidily.
Safety photo-electric devices prevent over-ascending and over-descending of paper pile.
An adjustable depressor brush helps unloading paper from grippers and piling it up.
A rear air-controlled register lay helps picking up finished products easily.

examples

Possible jobs with PDF60

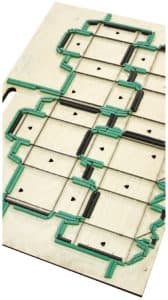

DIES

Machines

PDF60 Variants

PDF60T with hot foil unit

The PDF60T die cutting machine is like the PDF60, but additionally it is equipped with a hot foil group to apply foils that enhance the aesthetics of the end product.
